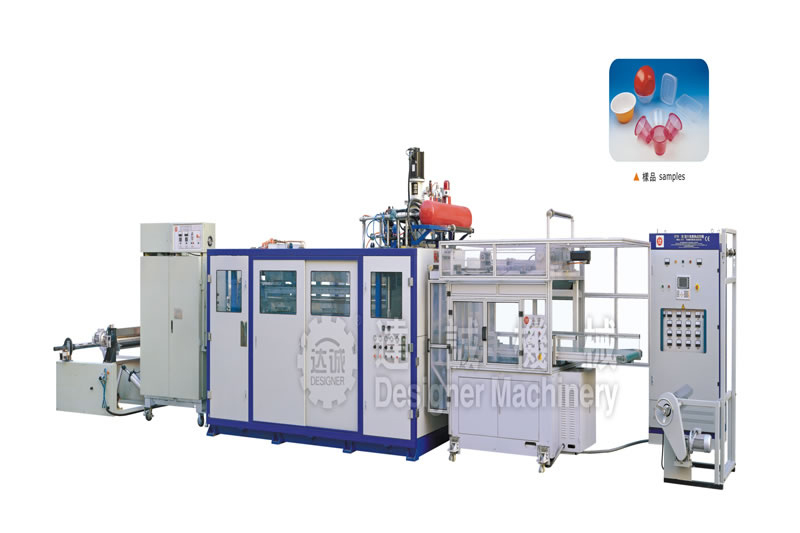

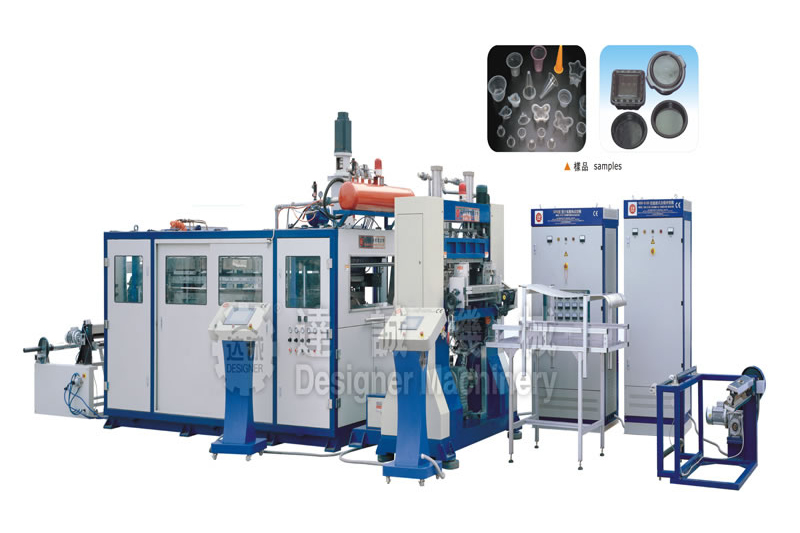

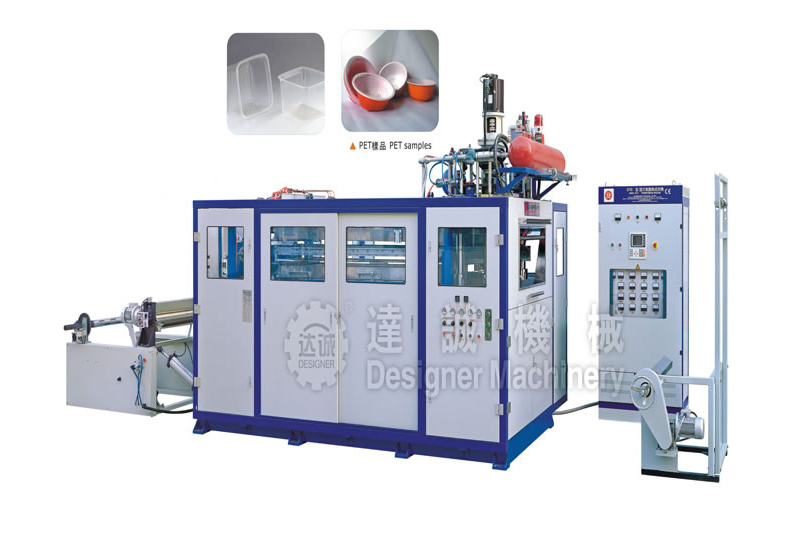

Our company is a professional plastic sheet thermoforming machine (high class type) manufacture. It is mainly used to make cups or containers with 170mm forming depth and 34molds/min working speed. The structure of the whole machine is compact, so one mold has all the functions, like pressing giving, forming, cutting, cooling, etc.

The plastic sheet thermoforming machine is fit for producing PP, PE, PET, PS, HIPS plastic products, like milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box and food box, etc.

• 1. The machine takes conjugate cam structure that makes the machine is characterized of stable running, simple operation and convenient maintenance.
• 2. Four column structure of the plastic sheet thermoforming machine to ensure the forming mould running stable with high precision.
• 3. .Chain exit device to ensure rapid mold changing.
• 4. This machine takes servo motor to guarantee high precision sheet feeding.
• 5. The products is stretched by servo motor that makes the stretch is of stable, fast, off-position accurate and control convenient.
• 6. The ceramic heater of the plastic sheet thermoforming machine is imported form German, which is of high efficiency heating and long service life time.

• 1. Unique tilting mold connect perfectly with vacuum cups taking units for automatic cup's stacking and counting. All movement of cups taking units are controlled by servo motors for high precision.
• 2. Servo motor driven drawing unit offers fast and precision drawing and drawing depth can be easy set on touch screen. Pneumatic valves adopts Japanese famous brand.
• 3. Whole machine is controlled by PLC. Main parameters are easy to be set on touch screen.
• 4. Our plastic sheet thermoforming machine is produced according to CE standards. Quality is controlled under ISO9001:2000 system

Model No.: S7125D
Suitable materials: PP/PS/PET/PVC/Biodegradable material
Main motor power: 11kw
Servo motor power: 11kw
Sheet thickness: 0.3-2.0mm
Formed depth: ≤170mm
Work efficiency: ≤29 cycle/min
Max formed area: 680×390mm
Consumed air: 4000-5000L/min
Heating power: 130kw
